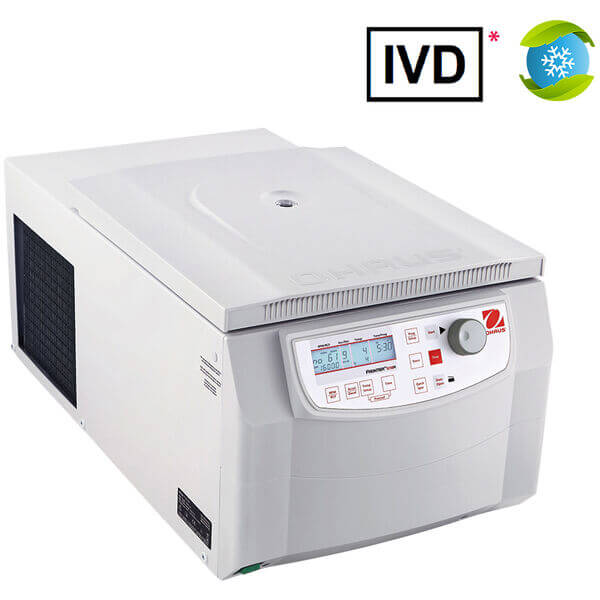

Frontier™ 5000 Series Multi Pro IVD

Powerful and Versatile High-throughput Centrifuges for Virtually Any Lab Application

FC5718R 230V

Maximum Capacity(Rotor)	4 x 200 ml
Maximum Relative Centrifugal Force	23,542 x g
Net Weight	132 lb (60 kg)
Item Number:	83041561

Request a Quote ADD TO QUOTE LIST

View All Frontier™ 5000 Series Multi Pro IVD Models

Overview
Specs
Accessories
Documents

Overview

Frontier 5000 Multi-Pro Centrifuges are designed for multipurpose use in various applications within research, industrial, and clinical laboratories and can be combined with our range of rotors and accessories for customized use. Available in 11 models with capacities from 0.2 ml to 4 × 1000 ml - and feature high-speed performance at maximum volume, automatic rotor identification and safety features. Depending on the centrifuge model, they can handle large quantities, various sizes and different types of tubes and bottles.

Applications

Centrifugal Separation, General Sample Preparation, Cell Pelleting, Protein Separation, Nucleic Acid Separation, Cell Concentrating, Chemical Separation, Diagnostics, Environmental Sample Preparation, Blood Sample Processing

Display

Backlit Liquid Crystal Display (LCD)

Operation

Designed to be used with a variety of rotors and accessories

Communication

N/A

Construction

Corrosion-resistant stainless steel chamber with Polycarbonate/ABS plastic lid

Design Features

Ten acceleration & deceleration rates, selection of running time from 10s to 99h 59min or continuous, quick spin, CFC-free refrigeration system, sample temp. indication (refrigerated models), lid-locking system, over-speed protection, dual imbalance sensing

Specifications

Maximum Capacity(Rotor)	4 x 200 ml
Maximum Relative Centrifugal Force	23,542 x g
Net Weight	132 lb (60 kg)
Speed Range	200 rpm – 18,000 rpm
Dimensions	28.78 in x 14.13 in x 16.02 in (731 mm x 359 mm x 407 mm) (LxHxW)
Lid lock	Motor driven
Working Environment	41°F - 95 °F, 80%RH, non-condensing (5°C – 35°C, 80%RH, non-condensing)
Safety Certification	*CE (EU 2017/746) - For further information on intended use and contraindications, please refer to the instructions for use.;FCC
Pre-cool time	From room temperature to 4℃ ＜ 10min
Power	AC Power (Included)
Power Consumption	660 W
Display	LCD with backlight
Rotor Recognition Method	Auto
Rotor In Package	Not applicable
Program memories	99
Running Time	Continous;Quickspin;10 sec to 99 h 59 min 59 sec
Noise Level	≤60±2 dB(A)
Deceleration Gear	10
Acceleration Gear	10
