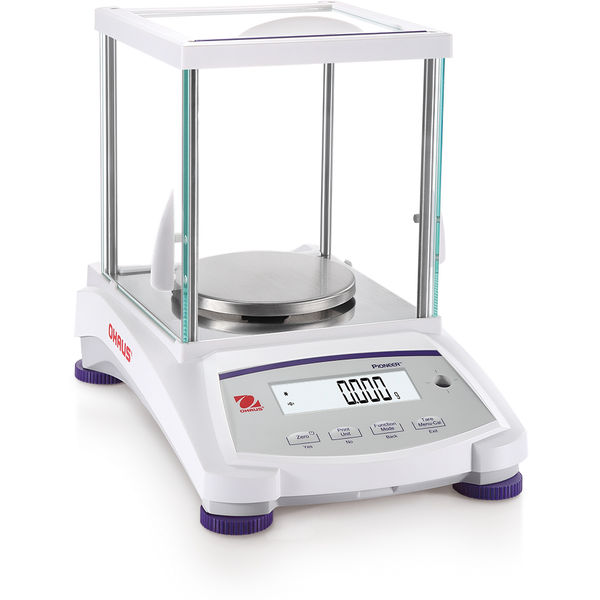

PJX Carat Series

Modern Compact Jewelry Balances for Accurate Weighing of Precious Metals and Stones

PJX1603

Maximum Capacity	320 g/1,600 ct
Readability	0.001 g;0.005 ct
Pan Size	4.7 in (120 mm)
Item Number:	30430033

Request a Quote ADD TO QUOTE LIST

View All PJX Carat Series Models

Overview
Specs
Accessories
Documents

Overview

The PJX Series offers a range of Jewelry Balances for weighing precious metals and stones in a variety of capacities and readabilities. The PJX Series is OIMLapproved and ideal for legal-for-trade applications. The PJX features an auxiliary display that can be easily connected to provide simultaneous viewing of results for both trader and customer. Select models come with a built-in internal adjustment system.

Applications

Basic Weighing, Parts Counting, Percent Weighing, Density Determination

Display

LCD with backlight

Operation

AC adapter (included)

Communication

RS232

Construction

Metal base, plastic top housing, removable stainless steel pan, removable glass draftshield or side doors, integrated weigh-below-hook, security bracket, calibration lock and in-use cover

Design Features

User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator

Specifications

Maximum Capacity	320 g/1,600 ct
Readability	0.001 g;0.005 ct
Pan Size	4.7 in (120 mm)
Battery Life	Not Applicable
Communication	RS232
Auxiliary Display Model	Available as an Accessory
Dimensions	321 mm x 274 mm x 209 mm (LxHxW)
Display	LCD with backlight
Internal Calibration	InCal™ - Semi Automatic
In-Use Cover	Included
Legal for Trade	Not Applicable
Linearity ±	0.002 g
Net Weight	10 lb (4.5 kg)
Pan Construction	Stainless Steel
Power	AC Adapter (Included)
Repeatability, typical	0.001 g
Stabilization Time	2 s
Tare Range	To capacity by subtraction
Units of Measurement	Milligram;Pennyweight;Ounce Troy;Gram;Kilogram;Pound;Ounce;Carat
Working Environment	operability guaranteed between 41°F and 104°F;50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C;10°C – 30°C, 80%RH, non-condensing)
